Capital Rangetops

The Chef's Collection

Your Kitchen, Your Way.

Capital rangetops offer the perfect solution for kitchen layouts that prioritize flexibility and design. Ideal for those who prefer wall ovens or a custom kitchen arrangement, a rangetop seamlessly integrates into your cabinetry, providing additional storage space beneath your cooking area. With a multitude of unique configurations and even custom placement of your burners, griddles, and grills, Capital let’s you arrange your cooking surface exactly how you want it.

Choose Your Burner Style

Making the choice between an open and sealed burner comes down to your personal
preferences. Choose between the ultra-powerful 25,000 BTU open burners or 19,000 BTU sealed burners.

Power-Flame™ Open Burner

Packed with an impressive 25,000 BTUs of power, the Power-Flame™ Open Burner will boil a gallon of water in record time, and simmer the most delicate sauces, accommodating everything else in between. Additionally, open burner models come with a dedicated 8,000 BTU FineTouch™ simmer burner.

Accu-Heat™ Sealed Brass Burner

Rated at 19,000 BTUs and capable of a delicate low heat. The Accu-Heat™ Sealed Brass Burners are among the highest output sealed burners on the market.

Rangetop Configurations

Enhance your rangetop with griddle, BBQ grill, and power wok configuration options.

BBQ Grill

With 18,000 BTUs/hr this indoor grill sears at up to 1,200ºF. Bring outdoor grilling indoors with
variable temperature control on our
two-sided TruSide™ channeling grates
and our hybrid ceramic radiants
encased in stainless steel.

Thermo-Griddle™

Our 3/8″ thick thermostatically controlled
stainless steel griddle plate gives precise
control over the griddle area, won’t rust,
and doesn’t need pre-conditioning.
12″ – 18,000 BTUs/hr.
24″ – 30,000 BTUs/hr.

Power Wok

The Power-Wok™ grate switches out with any standard burner grate on the cooktop when in use. Made with a matte porcelain,
it is commercial-quality, will fit most wok sizes, shields the chef from heat, and is easy to clean.

Shown: CGRT304

30″ Rangetop

Rangetop Features

Open Burner Models

  • Power-Flame™ burners are rated at 25,000 BTUs to deliver intense powerful heat
  • All burners turn down to a true simmer
  • FineTouch™ simmer burner rated at 8,000 BTUs
  • EZ-Clean™ Drip Trays – Full extension removable drip trays mounted on ball bearing rails.
  • Commercial Quality Cast Iron Grates.
  • Ergo-Cool™ – Die cast, chrome-plated, ergonomic metal knobs are cool to the touch
  • Auto-ignition/re-ignition on all burners
  • Island trim included
  • All griddle and BBQ grills come with stainless steel covers

Sealed Burner Models

  • Four Accu-Heat™ sealed brass burners rated at 19,000 BTUs each, creates powerfully consistent heat (additional 25,000 BTUs sealed center burner on the MCR305/GSCR305 models)
  • All burners turn down to a true simmer
  • Porcelain-coated cast iron grates with center bridge gate provide a continuous cooking surface
  • 8″ center 15,000 BTU BBQ Grill available (MCR302B2, GSCR302B2, GRT302B2)
  • 8″ center 15,000 BTU Thermo-Griddle™ available (MCR302G2, GSCR302G2, GRT302G2)

Open Burner Configurations

Sealed Burner Configurations

Specialty Wok Configurations

Knob Finish Options

All Capital Cooking rangetops are available in four modern knob finish options. Ask your Capital dealer for details.

Accessories

Open Burner Wok Grate: CWR

Sealer Burner Wok Grate: PSWK-RNG

For more flexibility, Capital offers a drop-in wok grate, allowing you to swap one of your burner grates and get your wok on.

Documentation

Specs:
CGRT30 – Specs
GRT30 – Specs

Care & Use:

Available Models

Open Burner Models

CGRT304
4 Burners

Sealed Burner Models

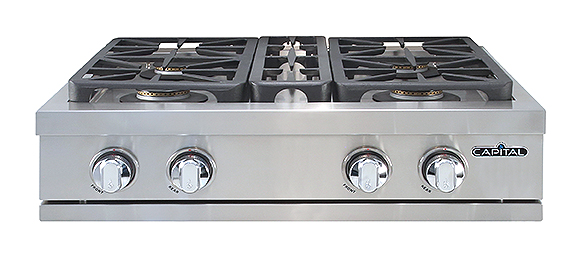

GRT304
4 Burners

GRT305
5 Burners

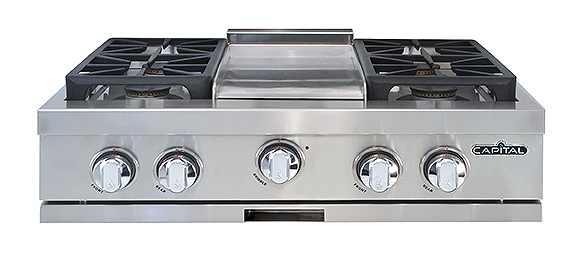

GRT302G2
2 Burners / Griddle / 2 Burners

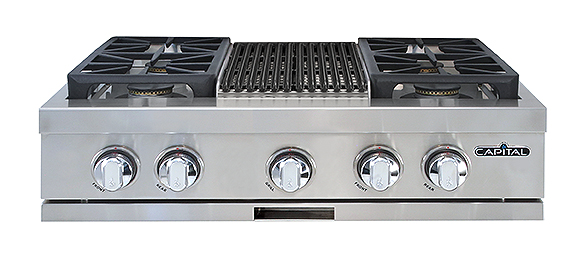

GRT302B2
2 Burners / BBQ / 2 Burners

Speciality Wok Models

GRT302W
2 Burners / Sealed Burner Wok

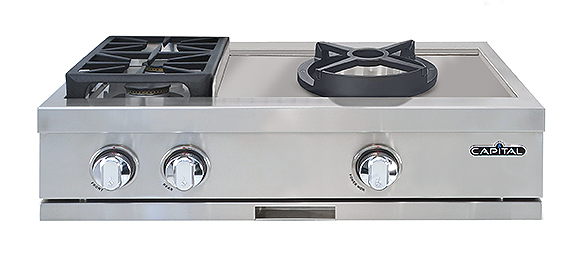

GRT302CW
2 Burners / Open Burner Wok

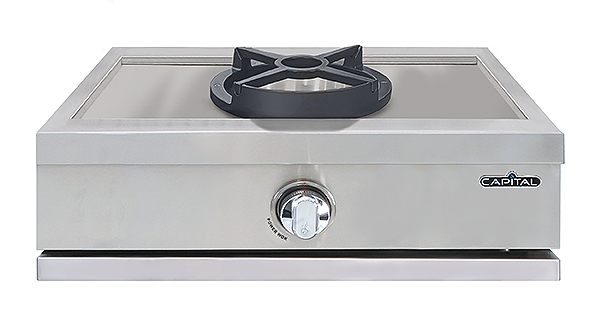

GRT24W
24″ Sealed Burner Wok

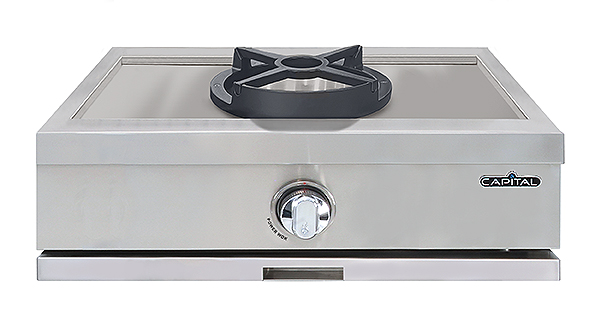

GRT24CW
24″ Open Burner Wok

Shown: GRT362G2

36″ Rangetop

Rangetop Features

Open Burner Models

  • Power-Flame™ burners are rated at 25,000 BTUs to deliver intense powerful heat
  • All burners turn down to a true simmer
  • FineTouch™ simmer burner rated at 8,000 BTUs
  • EZ-Glides™ – Full extension removable drip trays mounted on ball bearing rails.
  • Commercial Quality Cast Iron Grates.
  • Ergo-Cool™ – Die cast, chrome-plated, ergonomic metal knobs are cool to the touch
  • Auto-ignition/re-ignition on all burners
  • Island trim included
  • All griddle and BBQ grills come with stainless steel covers

Sealed Burner Models

  • Up to six Accu-Heat™ sealed brass burners rated at 19,000 BTUs each, creates powerfully consistent heat
  • All burners turn down to a true simmer
  • Porcelain-coated cast iron grates
  • Optional wok available
  • All griddle and BBQ grills come with stainless steel covers
Open Burner Configurations
Sealed Burner Configurations
Specialty Wok Configurations

Knob Finish Options

All Capital Cooking rangetops are available in four modern knob finish options. Ask your Capital dealer for details.

Accessories

Open Burner Wok Grate: CWR

Sealer Burner Wok Grate: PSWK-RNG

For more flexibility, Capital offers a drop-in wok grate, allowing you to swap one of your burner grates and get your wok on.

Documentation

Specs:
CGRT36 – Specs
GRT36 – Specs

Care & Use:

Available Models

Open Burner Models

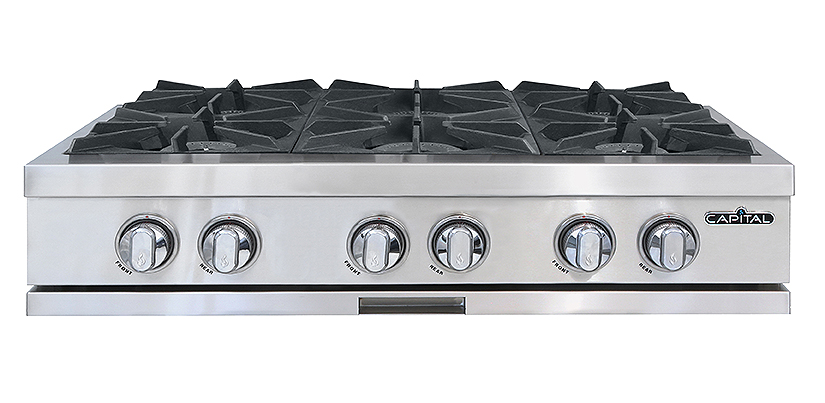

CGRT366
6 Burners

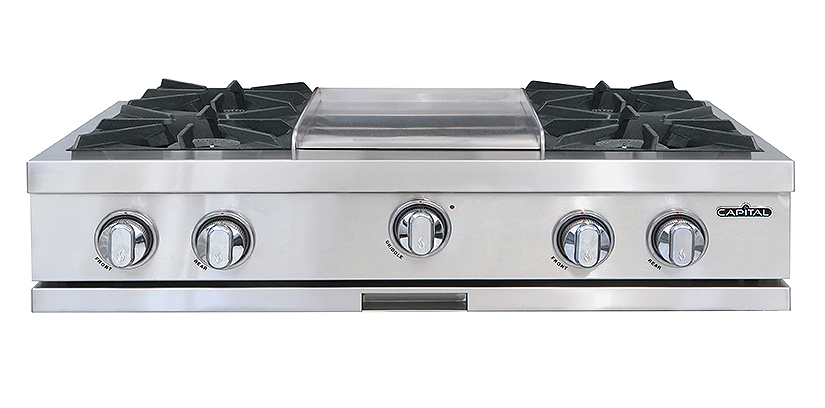

CGRT362G2
2 Burners / Griddle / 2 Burners

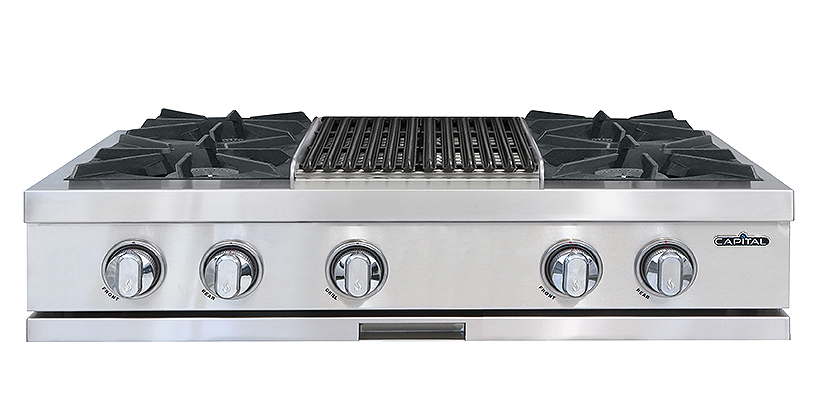

CGRT362B2
2 Burners / Grill / 2 Burners

Sealed Burner Models

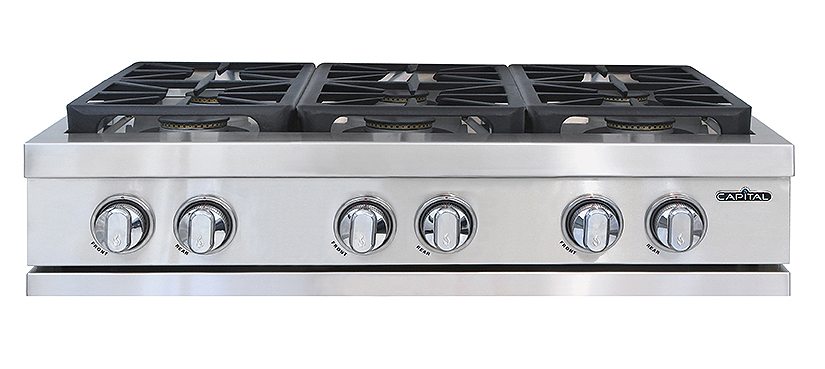

GRT366
6 Burners

GRT362G2
2 Burners / Griddle / 2 Burners

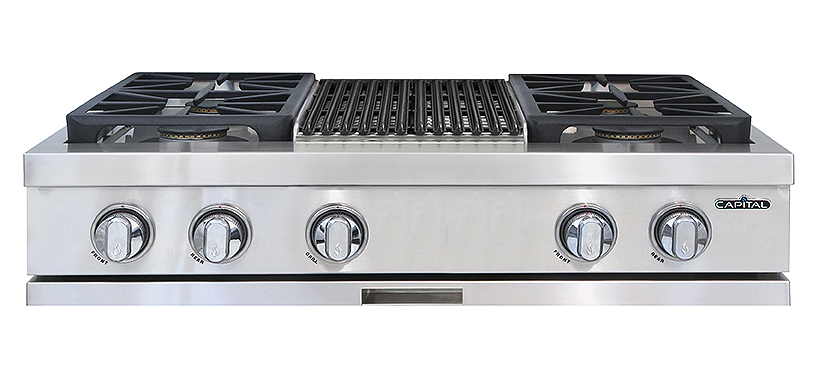

GRT362B2
2 Burners / Grill / 2 Burners

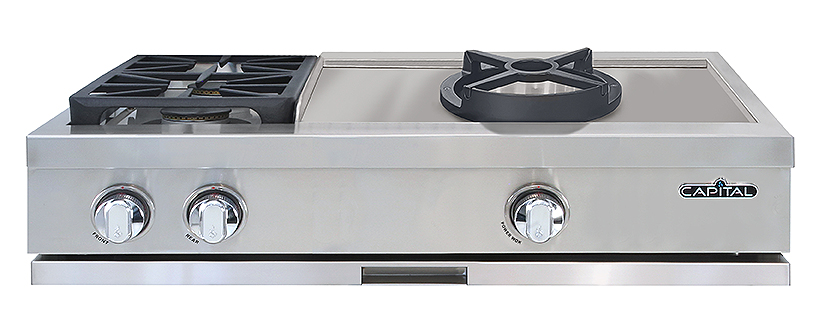

GRT362W
2 Burners / Sealed Burner Wok

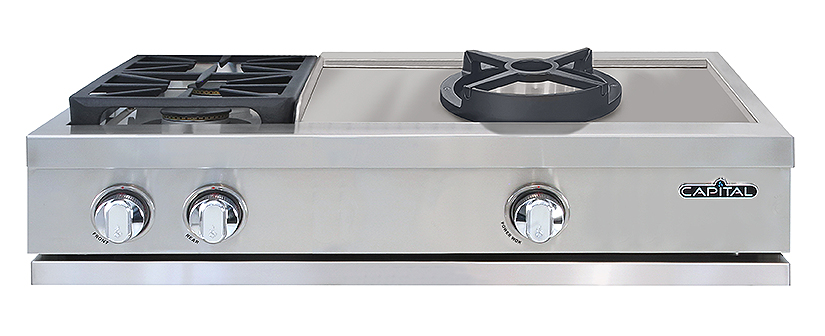

GRT362CW
2 Burners / Open Burner Wok

Shown: CGRT484BB

48″ Rangetop

Rangetop Features

Open Burner Models

  • Power-Flame™ burners are rated at 25,000 BTUs to deliver intense powerful heat
  • All burners turn down to a true simmer
  • FineTouch™ simmer burner rated at 8,000 BTUs
  • EZ-Clean™ Drip Trays – Full extension removable drip trays mounted on ball bearing rails.
  • Commercial Quality Cast Iron Grates.
  • Ergo-Cool™ – Die cast, chrome-plated, ergonomic metal knobs are cool to the touch
  • Auto-ignition/re-ignition on all burners
  • Island trim included
  • All griddle and BBQ grills come with stainless steel covers

Sealed Burner Models

  • Up to eight Accu-Heat™ sealed brass burners rated at 19,000 BTUs each, creates powerfully consistent heat
  • All burners turn down to a true simmer
  • Porcelain-coated cast iron grates
  • Optional wok available
  • All griddle and BBQ grills come with stainless steel covers
Open Burner Configurations
Sealed Burner Configurations
Knob Finish Options

All Capital Cooking rangetops are available in four modern knob finish options. Ask your Capital dealer for details.

Accessories

Open Burner Wok Grate: CWR

Sealer Burner Wok Grate: PSWK-RNG

For more flexibility, Capital offers a drop-in wok grate, allowing you to swap one of your burner grates and get your wok on.

Documentation

Specs:
CGRT48 – Specs
GRT48 – Specs

Care & Use:

Available Models

Open Burner Models

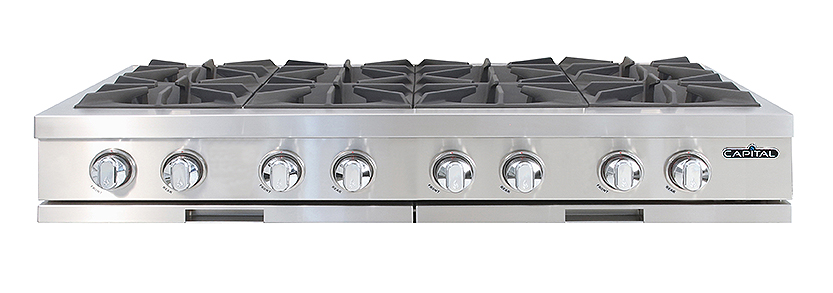

CGRT488
8 Burners

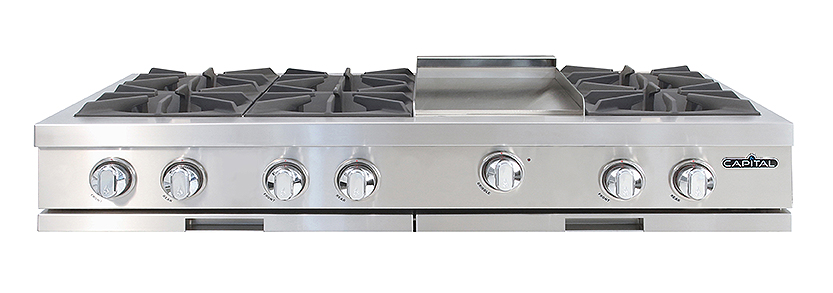

CGRT484G2
4 Burners / Griddle / 2 Burners

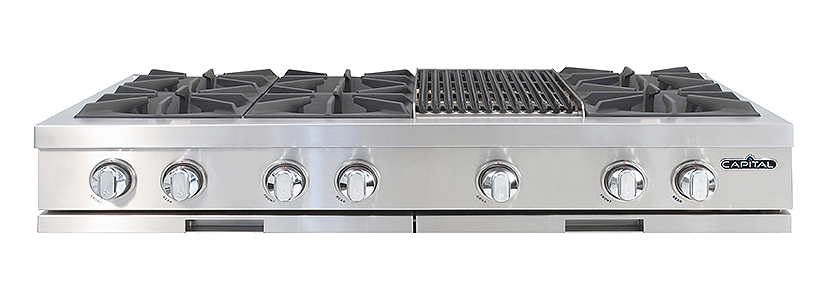

CGRT484B2
4 Burners / Grill / 2 Burners

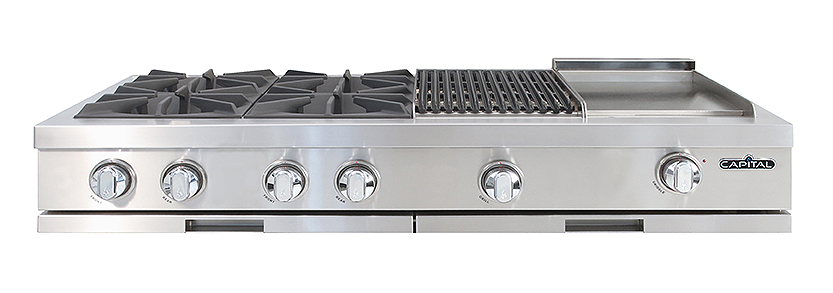

CGRT484BG
4 Burners / Grill / Griddle

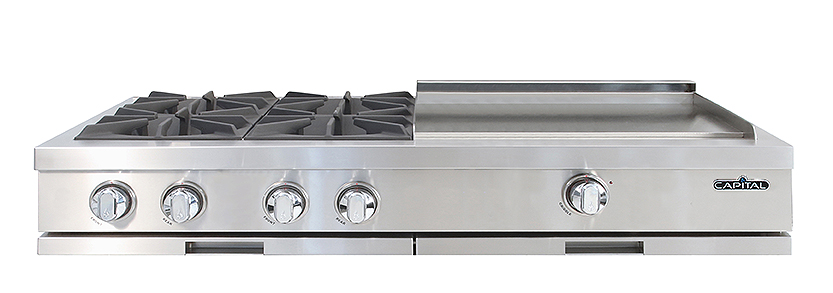

CGRT484GG
4 Burners / 24″ Griddle

CGRT484BB
4 Burners / 24″ Grill

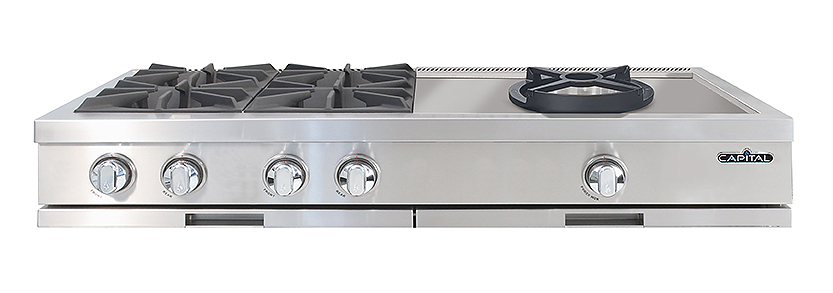

CGRT484CW
4 Burners / Power Wok

Sealed Burner Models

GRT488
8 Burners

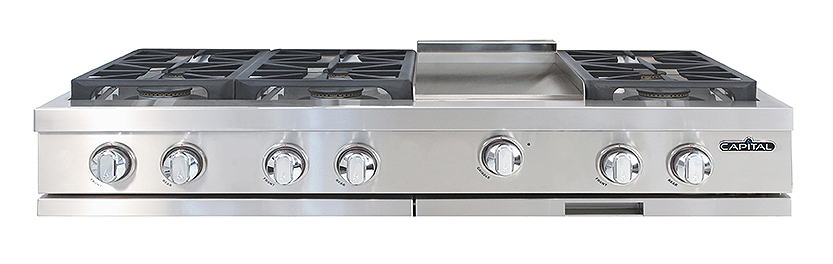

GRT484G2
4 Burners / Griddle / 2 Burners

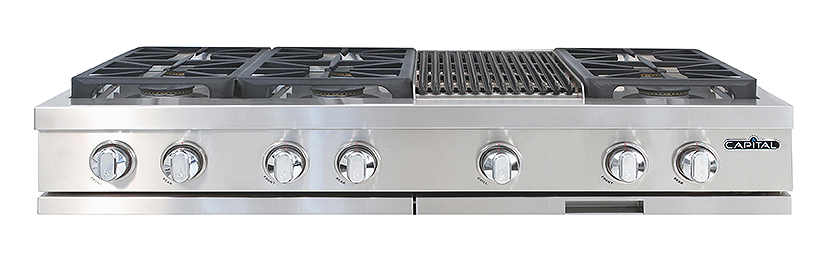

GRT484B2
4 Burners / Grill / 2 Burners

GRT484BG
4 Burners / Grill / Griddle

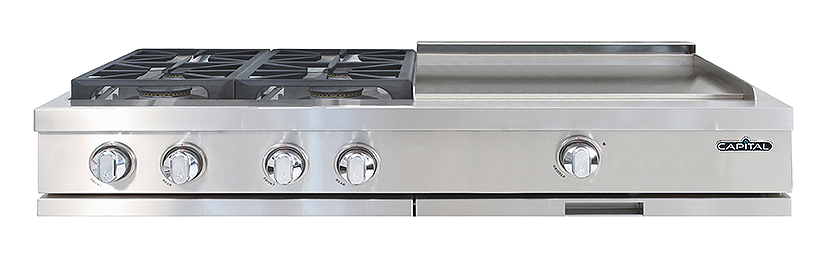

GRT484GG
4 Burners / 24″ Griddle

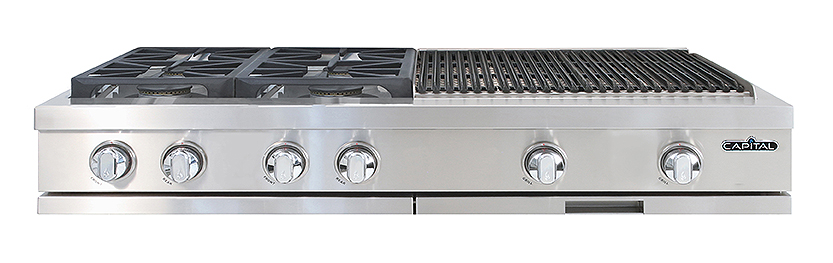

GRT484BB
4 Burners / 24″ Grill

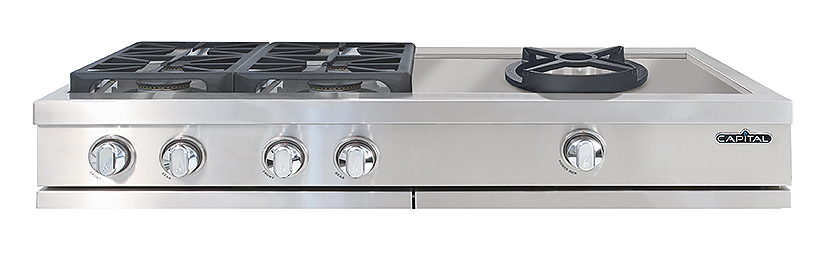

GRT484W
4 Burners / Sealed Power Wok

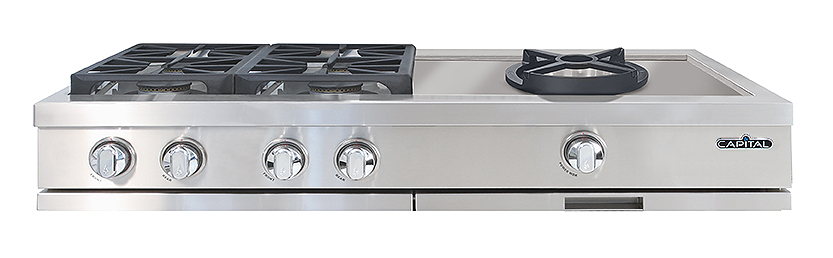

GRT484CW
4 Burners / Open Power Wok

Capital cooking offers customized placements of your burners, griddle, BBQ grill, and wok. Ask your Capital dealer for details.

Shown: GRT604GG2

60″ Rangetop

Rangetop Features

Open Burner Models

  • Power-Flame™ burners are rated at 25,000 BTUs to deliver intense powerful heat
  • All burners turn down to a true simmer
  • FineTouch™ simmer burner rated at 8,000 BTUs
  • EZ-Clean™ Drip Trays – Full extension removable drip trays mounted on ball bearing rails.
  • Commercial Quality Cast Iron Grates.
  • Ergo-Cool™ – Die cast, chrome-plated, ergonomic metal knobs are cool to the touch
  • Auto-ignition/re-ignition on all burners
  • Island trim included
  • All griddle and BBQ grills come with stainless steel covers

Sealed Burner Models

  • Up to ten Accu-Heat™ sealed brass burners rated at 19,000 BTUs each, creates powerfully consistent heat
  • All burners turn down to a true simmer
  • Porcelain-coated cast iron grates
  • Optional wok available
  • All griddle and BBQ grills come with stainless steel covers
Open Burner Configurations
Sealed Burner Configurations
Knob Finish Options

All Capital Cooking rangetops are available in four modern knob finish options. Ask your Capital dealer for details.

Accessories

Open Burner Wok Grate: CWR

Sealer Burner Wok Grate: PSWK-RNG

For more flexibility, Capital offers a drop-in wok grate, allowing you to swap one of your burner grates and get your wok on.

Documentation

Specs:
CGRT60 – Specs
GRT60 – Specs

Care & Use:

Available Models

Open Burner Models

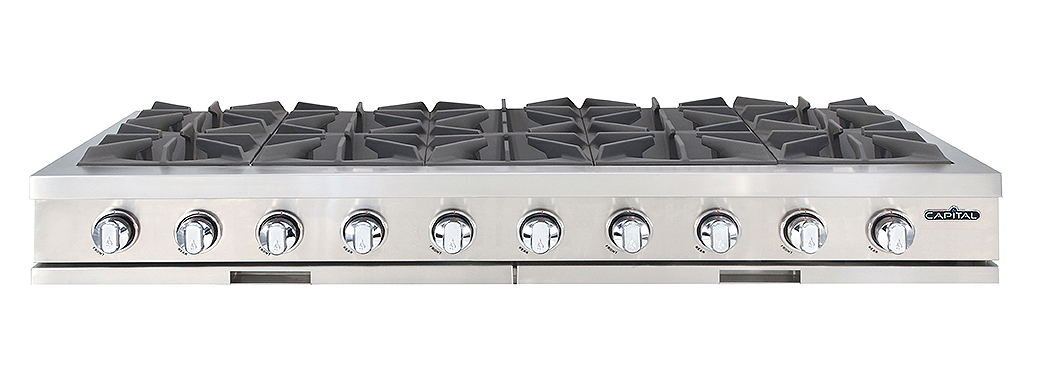

CGRT6010
10 Burners

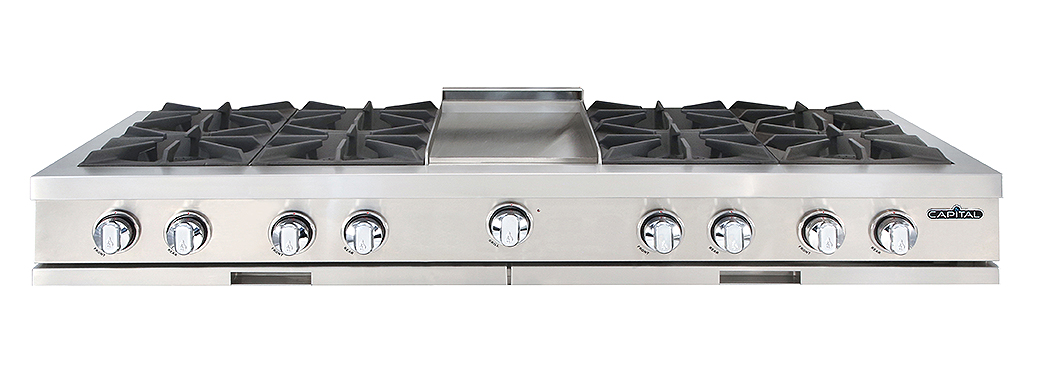

CGRT604G4
4 Burners / Griddle / 4 Burners

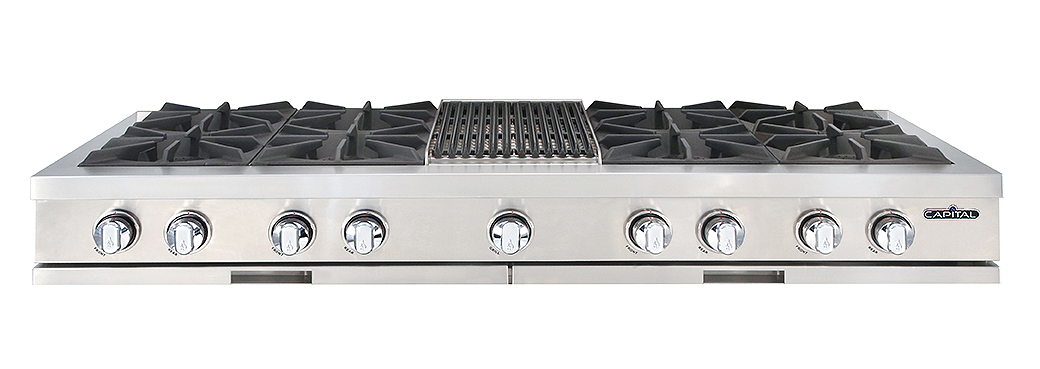

CGRT604B4
4 Burners / Grill / 4 Burners

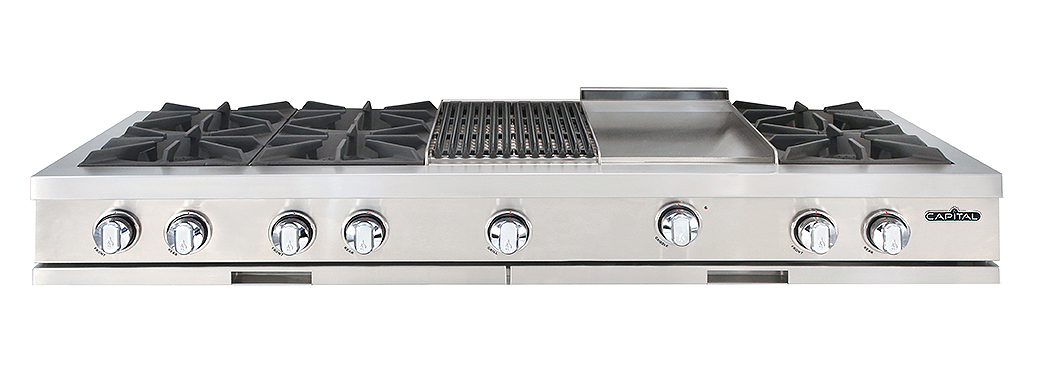

CGRT604BG2
4 Burners / Grill / Griddle / 2 Burners

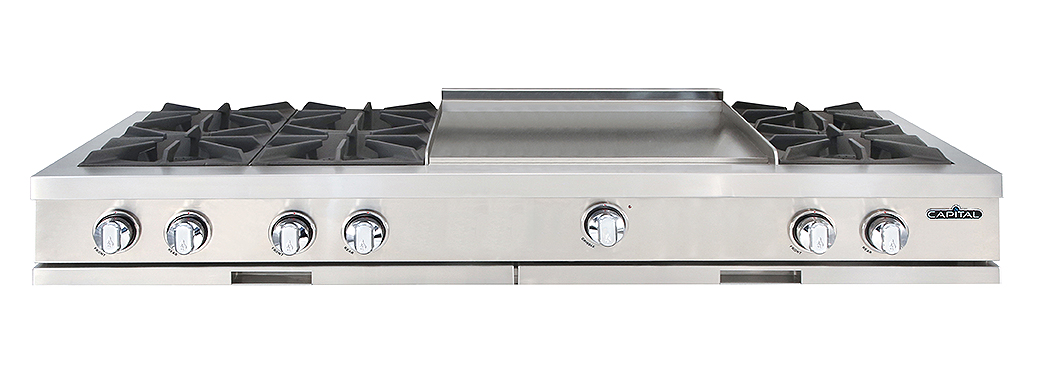

CGRT604GG2
4 Burners / 24″ Griddle / 2 Burners

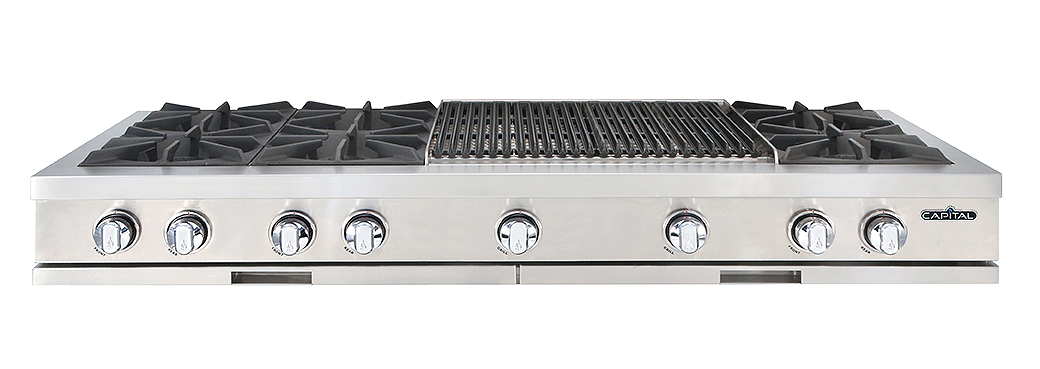

CGRT604BB2
4 Burners / 24″ Grill / 2 Burners

CGRT606CW
6 Burners / Power Wok

Sealed Burner Models

GRT6010
10 Burners

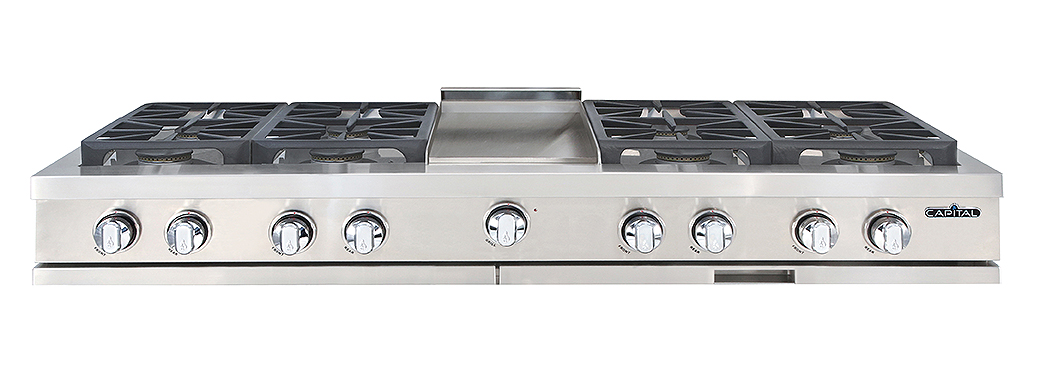

GRT604G4
4 Burners / Griddle / 4 Burners

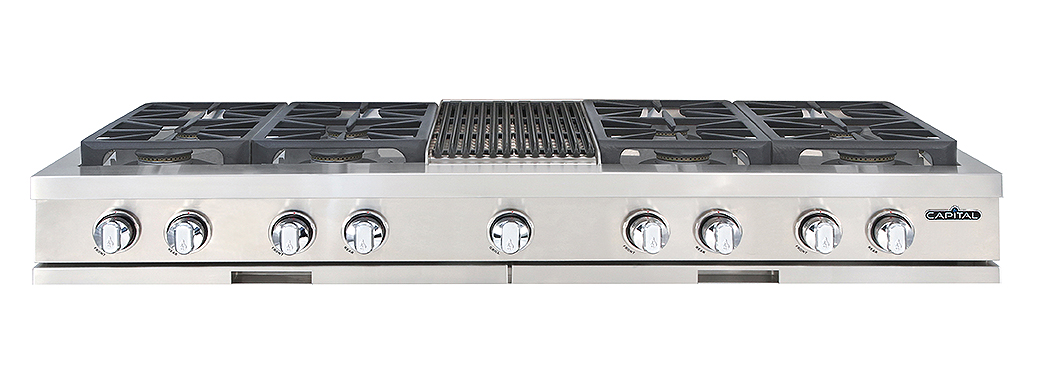

GRT604B4
4 Burners / Grill / 4 Burners

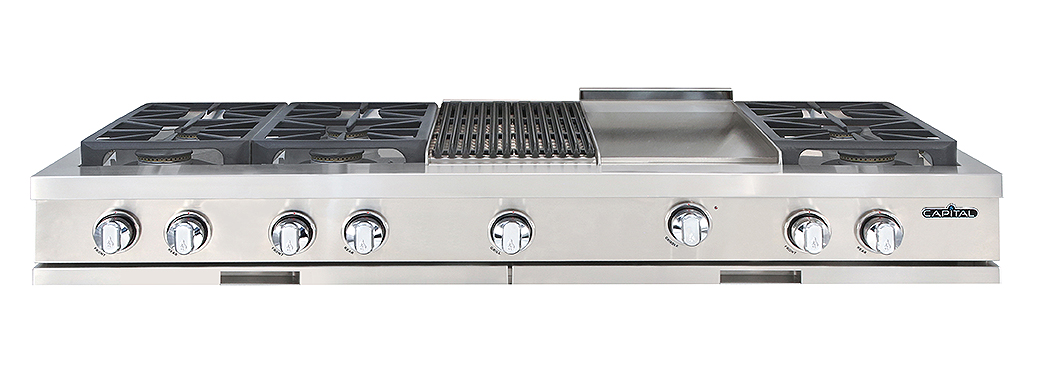

GRT604BG2
4 Burners / Grill / Griddle / 2 Burners

GRT604GG2
4 Burners / 24″ Griddle / 2 Burners

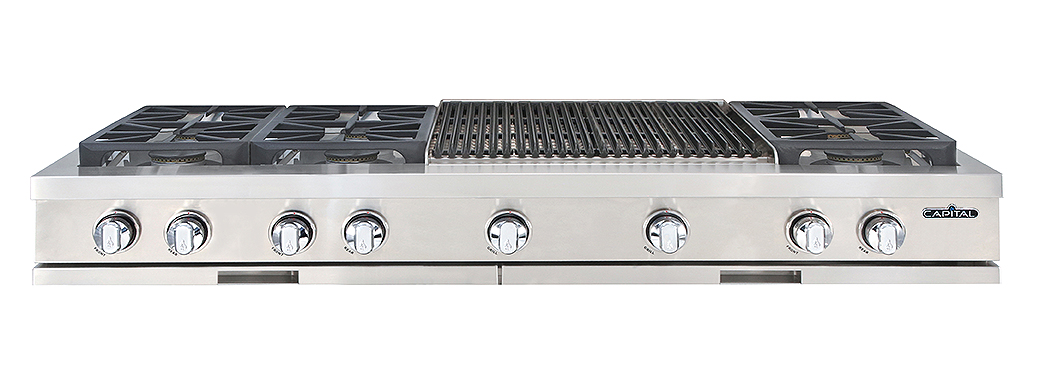

GRT604BB2
4 Burners / 24″ Grill / 2 Burners

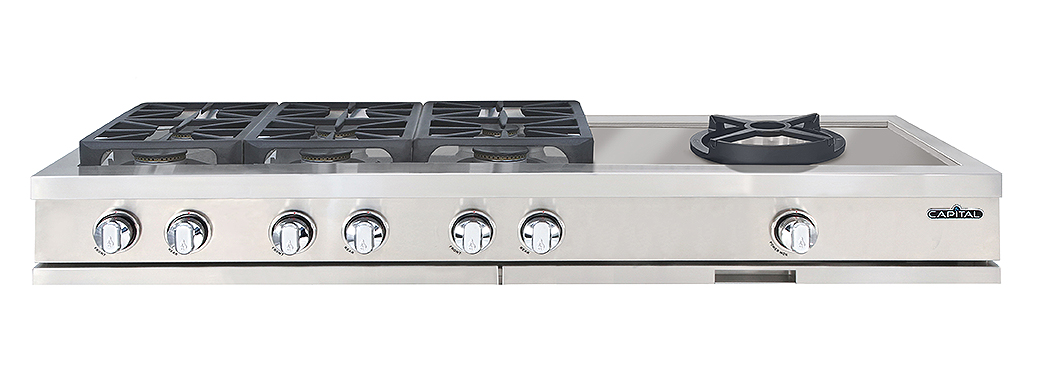

GRT606W
6 Burners / Sealed Power Wok

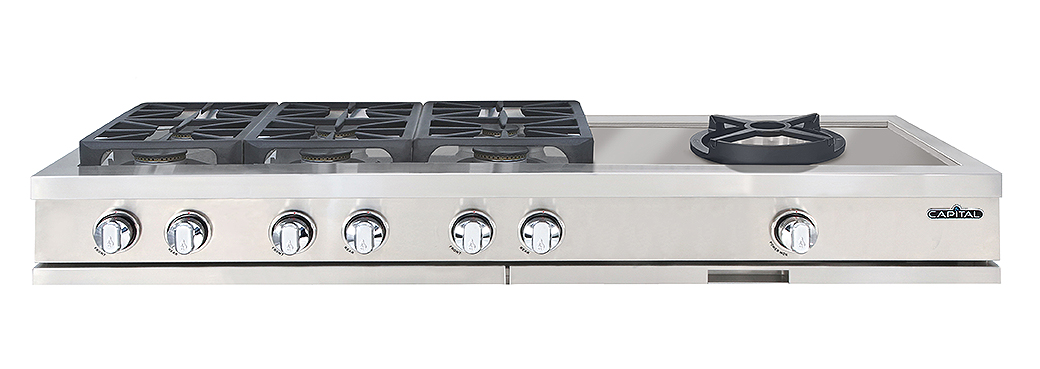

GRT606CW
6 Burners / Open Power Wok

Capital cooking offers customized placements of your burners, griddle, BBQ grill, and wok. Ask your Capital dealer for details.
